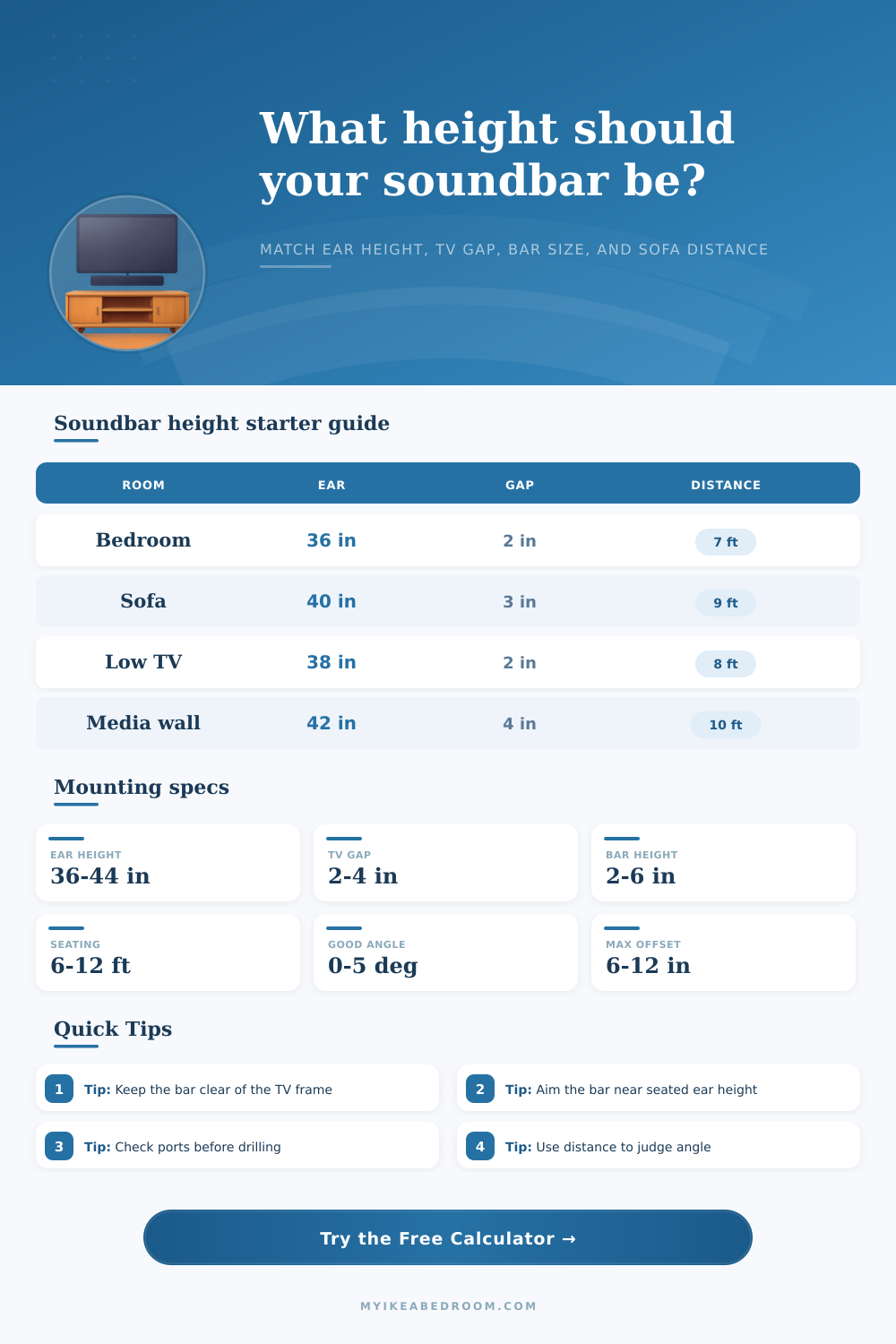

Soundbar Mounting Height Calculator
Plan a soundbar mount from seated ear height, TV bottom height, soundbar height, clearance gap, seating distance, and placement style before marking the wall.
Choose a common room setup, then fine tune the exact TV bottom, ear height, soundbar size, gap, and seating distance.
| Listening position | Typical ear height | Common distance | Height priority |
|---|---|---|---|
| Bed pillow or low lounge | 34 to 38 in from floor | 6 to 9 ft from TV wall | Keep the soundbar low enough that dialogue feels attached to the screen. |
| Standard sofa | 38 to 42 in from floor | 8 to 11 ft from TV wall | Center the bar near ear height when the TV bottom allows it. |
| Deep sectional or recliner | 40 to 44 in from floor | 9 to 13 ft from TV wall | Distance helps offset a slightly lower below-TV bar. |
| Gaming chair or desk chair | 42 to 48 in from floor | 4 to 7 ft from screen | Use tighter vertical alignment because the seat is closer. |
| TV bottom height | Below-TV bar fit | Suggested gap | Watch point |
|---|---|---|---|
| 36 to 42 in | Works with slim bars or shelf placement. | 1.5 to 2.5 in | Check furniture and center speaker clearance before drilling. |
| 43 to 50 in | Good range for many bedrooms and sofas. | 2 to 3.5 in | Keep the bar high enough for ear alignment but clear of the TV frame. |
| 51 to 60 in | Often leaves room for taller bars and wall brackets. | 3 to 4 in | Verify the TV itself is not already too high for comfortable viewing. |
| Above 60 in | Below-TV mounting may sit well above ear height. | 3 to 6 in | Use the listening angle result before choosing a final mark. |
| Soundbar body height | Mounting impact | Bracket allowance | Best placement |
|---|---|---|---|
| 2 to 2.75 in slim bar | Easy to tuck under a TV while keeping a clean visual gap. | 0.5 to 1 in | Below TV or centered near ear height. |
| 3 to 4 in standard bar | Needs enough TV-bottom height for gap plus bar body. | 1 to 1.5 in | Below TV with a 2 to 4 in clearance gap. |
| 4.5 to 6 in tall bar | Can push the center well below the TV bottom. | 1.5 to 2 in | Console, shelf, or higher TV bottom setups. |
| Up-firing Atmos bar | Needs top clearance and should not be pressed under the TV frame. | 1 to 2 in | Open shelf or wall mount with clear space above the drivers. |
| Angle result | Offset feel | Typical cause | Adjustment idea |
|---|---|---|---|
| 0 to 3 degrees | Very natural dialogue height. | Bar center is close to seated ear height. | Keep the TV gap and cable allowance as planned. |
| 3 to 5 degrees | Usually comfortable for normal sofa distance. | Bar is modestly above or below ear height. | Use a bracket slot or shelf feet to fine tune by 1 to 2 in. |
| 5 to 8 degrees | Noticeable but often acceptable from farther seating. | High TV, low console, or tall bar geometry. | Reduce the gap, raise the shelf, or consider a different placement mode. |
| Over 8 degrees | Dialogue may feel detached from the screen. | Close seating with a large vertical height difference. | Move the bar toward ear height or increase seating distance if possible. |
Clearance tip: Mark the TV bottom, bar top, and cable exit on painter tape before drilling so the visible gap and bracket allowance are easy to compare.
Listening tip: When two heights both fit under the TV, choose the one that puts the soundbar center closer to seated ear height.
How to Properly Install a Soundbar
When considering the installation of a soundbar for a television setup, there is several factor and steps that must be taken to ensure that the soundbar is properly installed. Each of these factor and steps are essential to ensuring that the soundbar functions in the desired manner and that the individuals that use the television recieve the audio properly. The height of the soundbar is one of the main factors that will impact the way that an individual hears the audio from that soundbar.
As discussed above, the height of a soundbar will determine whether the audio appears to emanate from the screen of the television or some other location. Additionally, ensuring that the soundbar is installed to be near the seated ear height of an individual will ensure that the audio from the soundbar feels attach to the images that are displayed from the television screen. Prior to installing the soundbar, there are several measurements that must be made of the television and the soundbar itself.
How to Install a Soundbar at the Right Height
These measurements will allow for the soundbar to be positioned in a manner that ensures that it is at the correct height for the television. As discussed above, an individual must measure the seated ear height, the distance from the floor to the bottom of the television must be measured, and the person must measure the height of the soundbar itself. Additionally, the placement of the soundbar can be above, below, or upon another component of the television setup; this factor will impact how height measurement relate to the soundbar installation.
Another factor related to the installation of the soundbar include the amount of clearance that must be provided for the soundbar itself. Clearances must be provided for the frame of the television, the remote sensor for the television, and the cables that connect the television to the soundbar. Ensuring that there is enough clearance for these components will make it easier to service the soundbar and television later on.
Additionally, providing clearance for the soundbar will reduce the amount of vibration that are released from the soundbar to the television, which will make the dialogue from the television clear. There are several ways to place the soundbar into the television setup. For instance, you can place the soundbar beneath the television; this placement will usually place the soundbar near the seated ear height of an individual.
Another method to install the soundbar is to place the soundbar above the television. However, placing the soundbar above the television will often result in the soundbar being higher than ideal height for that soundbar. Finally, another method to install the soundbar is to place the soundbar upon a shelf or console; this placement allows for the height of the soundbar to be adjusted once installed, but the soundbar should not crowd the televisons size.
Some of the common mistake that can be made in installing a soundbar include positioning the soundbar in relation to the television’s visual elements instead of its audio components. For instance, many individuals may choose to position the soundbar centered beneath the screen due to this visual balance; however, positioning the soundbar to achieve visual balance does not ensure that it will be at the correct height to radiate sound towards the television screen. Another common mistake is to not measure components of the soundbar other than the soundbar itself.
For instance, the brackets upon which the soundbar is mounted and the cables that connect the soundbar to the television take up some of the height of the soundbar; thus, one must also measure and account for these components in the installation of the soundbar. Finally, if the soundbar that is to be installed is of a certain height and includes up-firing speakers, some additional consideration must be made for that soundbar. For instance, if the soundbar includes up-firing speakers, the speakers will emit sound towards the ceiling of the room; placing the soundbar under the television with the television frame blocking the area above the soundbar will prevent those speakers from functioning properly.
Thus, an additional decision that must be made is whether to allow for the soundbar to be placed in a manner that increases the gap between the soundbar and the television screen in order to provide clearance to the up-firing speakers of the soundbar. Finally, as discussed above, it is important to determine both the seated ear height of an individual and the distance that an individual will be from the soundbar prior to installing the soundbar; taking this step will ensure that the soundbar is installed in a manner that prevents the need to repair any holes that may be punch into the wall during the soundbar installation. Overall, considering each of these factor will allow an individual to properly install the soundbar in relation to the television.
By considering the height of the soundbar, measuring the components of the television and the soundbar, considering the placements of the soundbar, considering the mistakes that may be made during installation, and considering the requirements for soundbars that include up-firing speakers, an individual can ensure that the soundbar is properly installed and will function in the desired manner after installation. You should of considered these things to avoid a bad setup.
