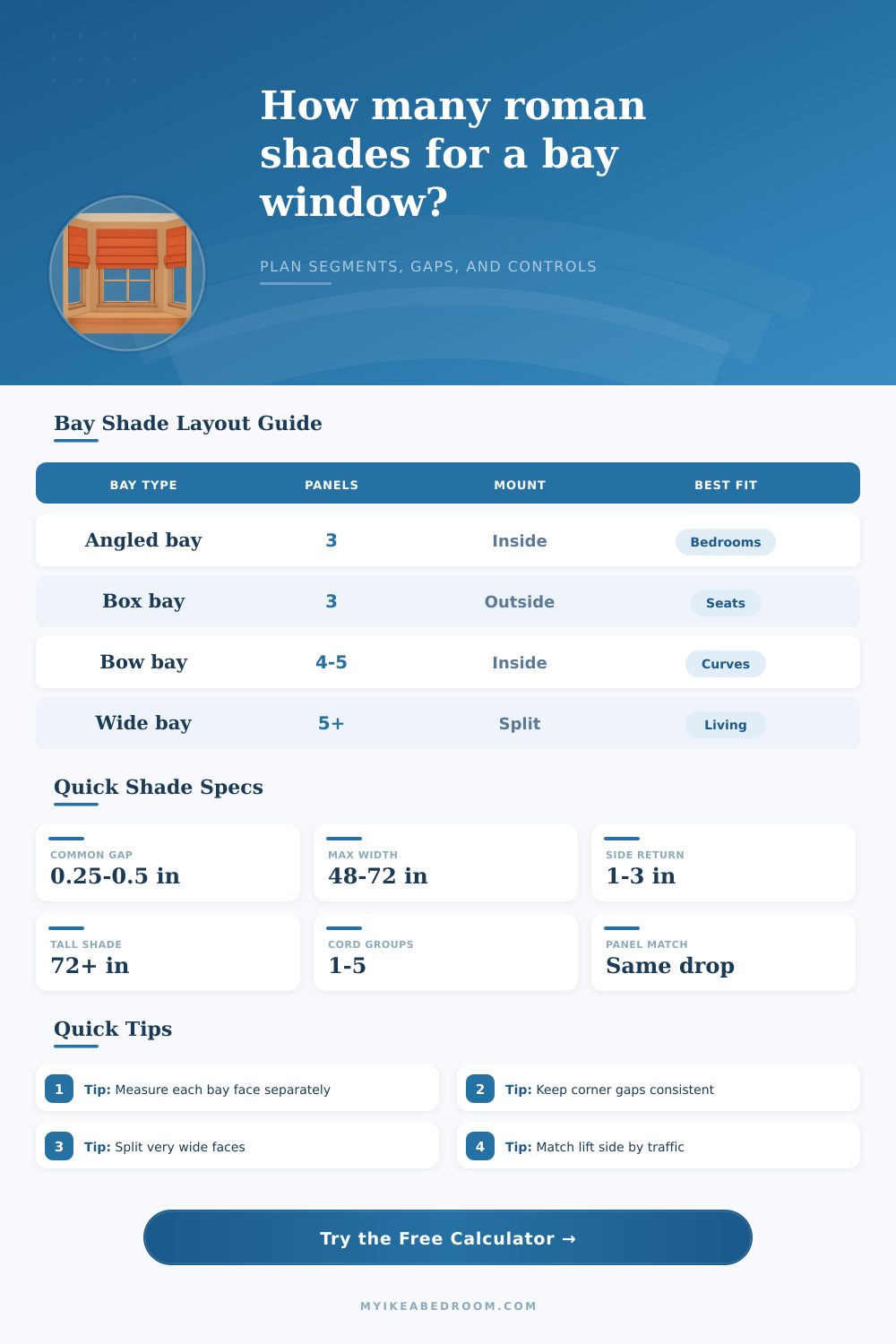

Roman Shade Quantity for Bay Window Calculator

Roman Shade Quantity for Bay Window Calculator

Estimate shade count, finished widths, corner gaps, fabric face area, brackets, and control grouping for angled, box, and bow bay windows.

🏠Bay window presets

📏Roman shade and bay inputs

Layout controls how center, side, and outer face widths are repeated.
Used only when the custom equal faces layout is selected.
Measure the flat glass or frame face, not the angled chord across the bay.
For 3-panel bays this value is used for both side faces.
Used by 4-panel and 5-panel bow layouts for the outside faces.
Use the longest drop if all roman shades should line up at the bottom.
The visible clearance where adjacent headrails meet at bay angles.
Inside mounts often need a small deduction on each side.
Outside mounts can extend beyond the frame for better side coverage.
Segments wider than this are split into matched roman shades.
Useful for inside mounts and shallow bay recesses.
Keep mirrored side faces in matching shade counts

Roman shade quantity result

Total roman shades
0
for all bay faces
Recommended face widths
0 in
finished shade width range
Fabric face area
0 sq ft
visible shade area with buffer
Controls and brackets
0 / 0
control groups / brackets

🧵Shade specification grid

0.25 in
Inside gap
Common per-side deduction for square, smooth bay frames.
0.5 in
Angle gap
Practical visible space between adjacent roman shade headrails.
60 in
Wide limit
Typical point where splitting a large face becomes easier to operate.
72 in
Tall drop
Longer drops benefit from careful lift selection and level headrails.

⚖Bay shade comparison grid

Inside each face Cleanest look when the bay frame is deep enough and every face is square.
Outside on trim Adds side coverage and helps uneven frames share the same finished drop.
Split wide center Keeps lift weight manageable when the middle bay face is much wider.
Grouped controls Reduces visible lift points but still counts each physical roman shade.

📋Reference tables

Bay layout Face sequence used Shade count cue Best measuring note
3-panel angled bay Side, center, side Usually 3 shades unless center is wide Measure each flat face across the frame
3-panel box bay Side, center, side Often works with outside returns Check window-seat lid and handle clearance
4-panel bow bay Outer, center, center, outer Four shades or more if center faces split Keep visible gaps even around the curve
5-panel bow bay Outer, side, center, side, outer Five shades gives the smoothest arc Label every face before entering widths
Custom equal faces Repeated equal width One shade per face unless width limit is exceeded Use the same deduction on every segment
Mount method Width adjustment Depth cue Quantity effect
Inside each opening Subtract side clearances Needs usable headrail depth Usually one shade per bay face
Outside on trim or wall Add outside returns Works over shallow frames Can make wide faces exceed split limit
Ceiling or soffit mount Use face width minus angle gaps Best with level bay ceiling Clean count with consistent headrail line
Hybrid mount Center outside, sides inside Useful for projection differences May create mixed finished widths
Finished face width Roman shade plan Control note Bracket cue
18 to 36 in Single narrow shade Side lift works well Two brackets are usually enough
36 to 48 in Single standard shade Choose lift side by room traffic Add center support when specified
48 to 60 in Single wide shade or split pair Consider fabric weight and drop Three brackets helps keep level
60 to 84 in Two matched shades Mirror the controls or group motors Two supports per split shade minimum
84 in and up Three or more matched shades Keep equal widths where possible Plan brackets from each shade width
Control layout Control groups counted Best use Bay planning cue
Individual lifts One per shade Most flexible light control Alternate lift sides away from corners
Paired side shades Side pairs plus center Symmetrical 3-panel bays Keep side shade widths matched
Left, center, right groups Three groups where possible Bow bays with many faces Good balance of control and clean look
Motorized group One scene group Tall or hard-to-reach bay windows Physical shade quantity stays unchanged

💡Bay roman shade tips

Number each bay face before measuring. Roman shade quantity depends on the flat faces of the bay, not the straight wall-to-wall opening. A five-face bow bay normally needs at least five physical shades.
Keep the corner gaps deliberate. Small, even gaps between shade headrails look cleaner than forcing wide shades to collide at the bay angles. Use the same gap value on mirrored sides.

The calculator estimates physical roman shade quantity and planning dimensions. Final fabrication should follow the headrail, lift system, and fabric workroom limits for the exact product being made.

Roman shades for bay window require you to measure each face of the bay window separately. The reason that measuring the entire bay window are incorrect is because each face of the bay window has a different angle and each face requires its own measurement. If you dont take the time to correctly measure the bay window faces separately, then the Roman shades will not fit the angles of the bay windows glass and they will not function in the way that you may require.

The width of each face of the bay window will determine the width of headrail for each of the Roman shades. When measuring the width of the bay window, you must account for the gaps that will exist in the corners of the shades. These gap will allow the Roman shades to move without hitting each other.

How to measure Roman shades for a bay window

Three eighths of an inch is the most common gap for Roman shades, and using this gap will ensure the shades will stack proper when raising the Roman shades. Roman shades can be mounted in different ways, and each mounting style will change the measurement that you must use for the shades. Roman shades can be mounted inside of the window frame, but only if the frame is deep enough to take the shade.

Roman shades can also be mounted on the trim outside of the bay window‘s frame. When using outside mountings, you can ignore small depth difference in the bay windows glass. However, Roman shades mounted outside of the bay window frame will add to the amount of fabric in the returns of the shades, and this may make one Roman shade too wider to operate correctly.

There are also different control system for the Roman shades. You can use individual cords for each Roman shade or choose to use groups of cord. Using groups of cords will reduce the number of cords necessary in the room, but using individual cords will allow for more flexibility in the amount of light that enter the bay window.

Additionally, using motorized control system allows you to use a button to control the Roman shades, which is especially useful for bay windows in locations that you cant reach easily. The weight of the fabric for the Roman shades also has an impact on the width of the shade. Roman shades made of lightweight fabric can span a wider distance than Roman shades made out of heavy fabrics like velvet.

Additionally, using a calculator to determine the finished width of the Roman shades will ensure that you dont order shades that are the same size as the bay window. This calculator will account for the extra fabric need for Roman shades to be constructed correctly. Finally, once you have all of the above measurements and information, you can create a layout for the Roman shades.

You will use the mounting styles for the shades to determine which control group you will use for the bay window. Once you have chosen the Roman shade layout, provide the final measurement to the manufacturer of the shades. By following each of these step for measuring the Roman shades for your bay window, you can ensure that the shades will not only function correct but will also correctly fit the bay window.
