Ripplefold Drapery Calculator – Fabric & Carriers

📏 Ripplefold Drapery Calculator

Calculate exact fabric width and carrier count for ripplefold track systems

⚡ Quick Presets:
Track & Panel Settings
📊 Your Ripplefold Results
Total Fabric Width
Fabric Per Panel
Number of Carriers
carriers total
Carrier Spacing
📋 Full Calculation Breakdown
Track Width
Ripple Ratio Applied
Total Fabric Width (ratio x track)
Number of Panels
Fabric Width Per Panel
Carrier Spacing Used
Carriers Per Panel
Total Carriers Needed
Recommended Carrier Spacing Range
Ripple Ratio Quick Reference
Minimal
80%
Sheers & modern panels with subtle wave
Standard
100%
Everyday lined drapes, bedroom use
Full
120%
Living rooms, heavier lined fabric
Luxurious
140%
Hotel look, floor-to-ceiling drama
💡 Installation Tip: Ripplefold drapes require a dedicated ripplefold track (not a standard rod). The track has evenly spaced slots where carriers clip in. Always order 10–15% extra fabric to account for side hems and seam allowances on each panel.
💡 Carrier Setup Tip: Standard carrier spacing is 3–4 inches (8–10 cm) for most fabrics. For heavier or stiffer fabrics, use closer spacing (2.5–3 in / 6–8 cm) to maintain even wave formation. Always start and end with a fixed end carrier at each edge of the track.

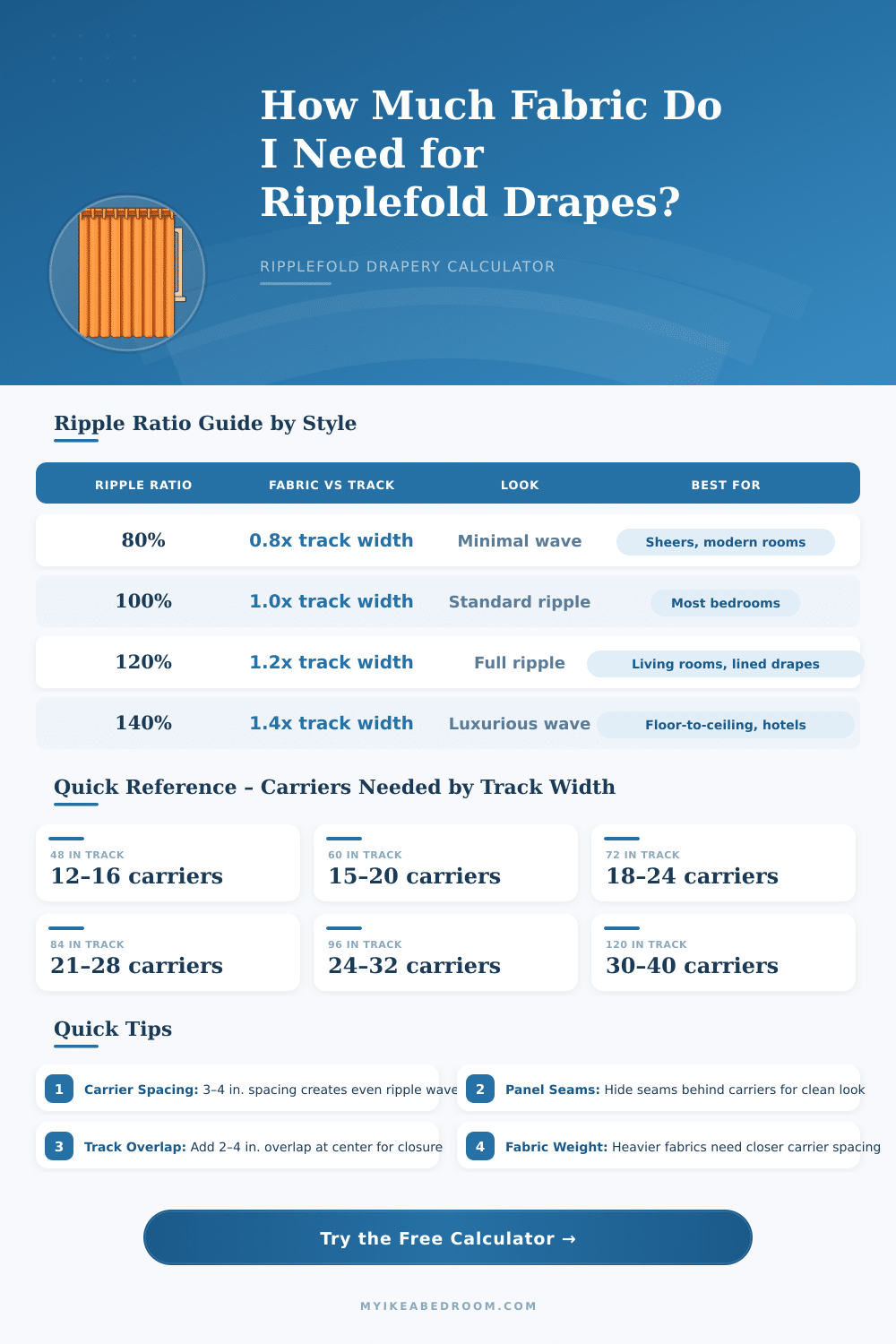

Ripple Ratio Guide by Fabric Type
Ripple Ratio Fabric Multiplier Wave Look Recommended Fabric Typical Use
80%0.80 x track widthFlat / subtleSheers, voile, linenModern minimalist rooms
100%1.00 x track widthGentle rippleCotton, linen blendBedrooms, casual spaces
120%1.20 x track widthFull waveLined cotton, polyesterLiving rooms, offices
140%1.40 x track widthDeep rippleVelvet, heavy linenHotel-style, luxury spaces
Carrier Count by Track Width (Standard 3.5 in Spacing)
Track Width (in) Track Width (cm) Carriers @ 3 in Carriers @ 3.5 in Carriers @ 4 in
36 in91 cm12109
48 in122 cm161412
60 in152 cm201715
72 in183 cm242118
84 in213 cm282421
96 in244 cm322724
120 in305 cm403430
Fabric Width Needed by Track Size & Ripple Ratio
Track Width 80% Ratio 100% Ratio 120% Ratio 140% Ratio
36 in29 in36 in43 in50 in
48 in38 in48 in58 in67 in
60 in48 in60 in72 in84 in
72 in58 in72 in86 in101 in
84 in67 in84 in101 in118 in
96 in77 in96 in115 in134 in
120 in96 in120 in144 in168 in

Ripplefold drapery is the name for roll-pleat drapery fabrication. That style gives a clean, elegant look seen from both sides. Soft, natural folds create a great floor to ceiling effect that highlights the architecture of any room.

Interior designers and architects often seek this simple and elegant style

What Is Ripplefold Drapery

Ripplefold drapery slips flat and without effort on a custom ripplefold track. The regular wave pattern gives a clean look that matches modern homes. New hardware choices mean high-end design with ripplefold drapery, and its clean lines are liked in modern interiors.

Because of its simple elegance and practical function, ripplefold drapery is becoming more popluar.

Ripple fold style curtains show a stable S-curve that goes all along the track. The waves form because the chosen carriers are tied with string to create that uniform move. You often see that style in hospitality places, for instance in hotels and banquet rooms.

When closed, ripplefolds create continuous waves or folds from one end of the track to the other, and all the way down.

The wavy, billowing folds in the panel give a gentle ripple effect that keeps its form while the drapery opens and closes. A good comparison for this is the interior of an accordion. The folds in the body of the instrument allow a musician to open and close it as needed.

When the instrument is closed, the folds of the material knit like the S-curve of ripplefold drapery when the drapes are pulled to the side.

Some styles of drapery are more practical than others. The easiest to use include ripple fold, tailored pleat, pinch pleat, and cubicle drapery. Ripple fold and cubicle drapery slip on a track system, which makes them very useful.

They move easily along the custom tracks. Ripplefold track sets can be mounted to the wall or ceiling.

When you talk about the fullness of ripplefold draperies, the topic is the ratio of fabric to the space. For instance, to cover 100 inches, you could choose to use 160, 180 or 200 inches of fabric. Every addishun of fabric increases the fullness of the ripple folds.

In the case of a split-draw drapery, overlap masters overlap and remove light gaps. Instead, butt masters are designed to meet in the center on a split-draw drapery to give a consistent ripplefold look through the whole drapery, but they do not overlap in the center.

The drapery header is called a ripplefold, and the fabric can be something like a white sheer. Getting the S-wave look without right hardware is hard. The curtain will just stretch to where it is flat without the right track runners.

Also custom ripplefold drapery can be costly. Even with the cheapest fabric available, like unlined cotton, a large window setup can cost more than $2000. You can save around 40% to 60% when you buy handmade drapery directly from the maker with freeshipping.

All fabrics from some makers are certified eco-friendly.
