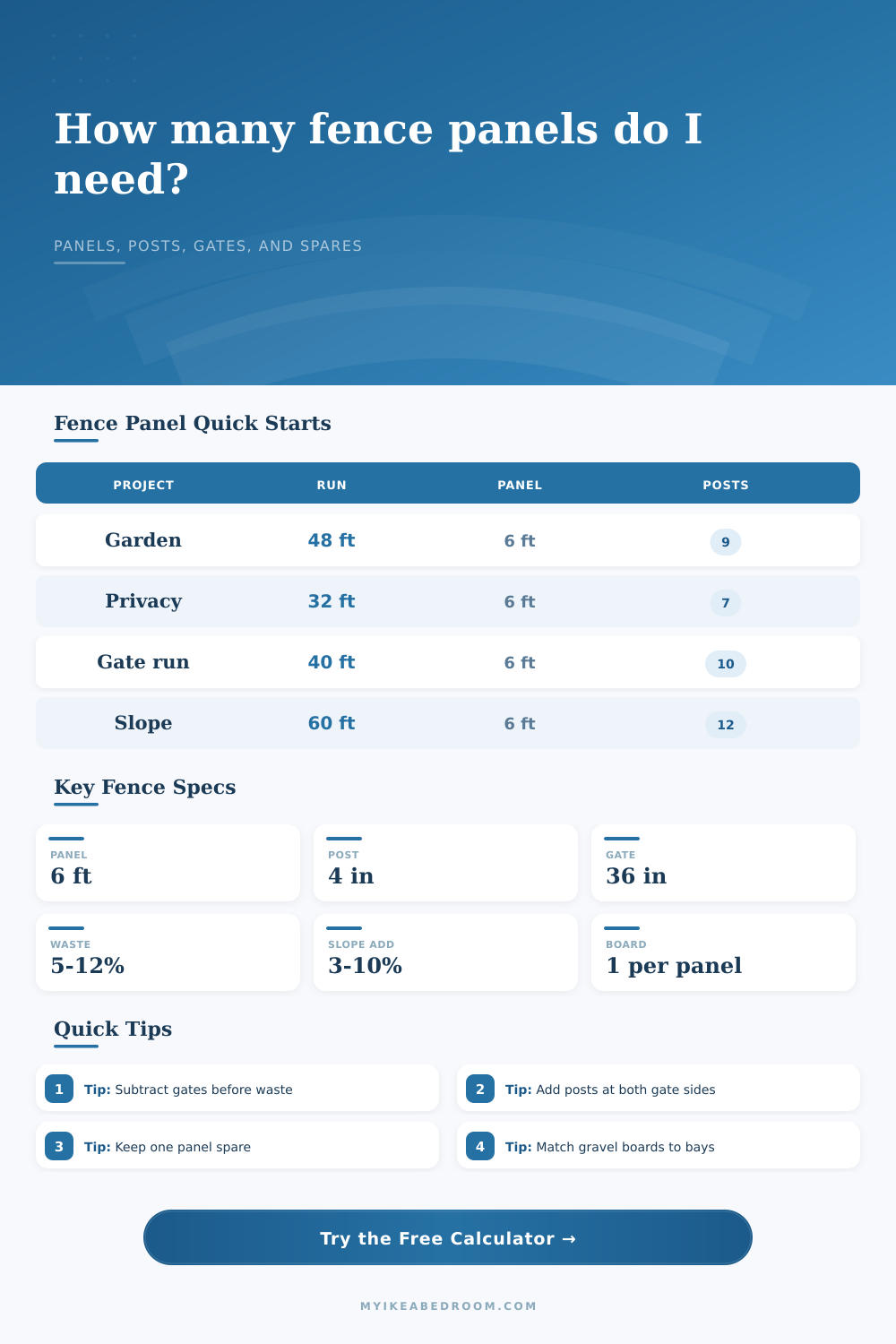

Fence Panel Quantity Calculator

There you are, standing in your yard with your tape measure and a general idea of what you’d like to do: add some privacy to the garden. About how far does the property line extend? OK, somewhere around there. What kind of panels would you prefer? Something about this: But then things get nit-picky, the little details that make all the difference when it comes to getting an accurate list for shopping. And throw a wrench into the works.

Maybe you forgot the posts; maybe it’s just a few inches off from where you thought, which now will mean waiting weeks on deliveries (or having to order too many panels). When you type in your material specs and run length, the calculator do the math for you; no guessing at coefficients required. Knowing why those numbers work the way they do is what sets apart a neat fence from a chaotic one.

Why Accurate Measurements Matter for Your Fence

A common pitfall that many people stumble into is measuring the linear distance along their fence line end-to-end and then dividing by the width of each individual panel. In practice, this method doesn’t work because it neglects the fact that posts also requires some width. Each time you drive a post into the ground, you’re reducing your effective length of fence by amount of the post’s width. That’s why bay length vs. Run length is important here.

A typical 6-foot wide panel isn’t going to cover six feet from the outside of one post to the other. It covers space in between. In our example above with 4-inch posts, the length of each bay are actualy greater than just the panel width itself. And those little fractions add up when you’re running something this long. You may be thinking, “I’m going to need ten panels.” But in reality it may require eleven, since math doesn’t quite work out into a nice whole number.

This gets complicated by gates. It’s easy for most homeowners to forget: A gate opening takes up two dedicated fence posts, one on each side of the frame. These aren’t panels; they’re structural requirements. That means if you subtract only the width of the gate from your overall run, you won’t have enough support to secure the extra hardware to hold the gate in place. The result is an unsteady feeling fence that looks amateurish. No matter what location you choose for an access point, the calculator automaticly adjusts for this. You’ll always have the proper support structure.

And then there’s the issue of waste. Adding ten percent for mistakes is a sensible standard, DIY guides all say when working with straight lines across a level surface. That won’t work in the garden, where most of us never are. Angled cuts or stepping up panels along slopes create sawdust, not fence. Add more allowance if you’re fencing a sloped driveway or following the irregular line of an existing hedge as your property boundary. The tool’s built-in slope setting take that into account, with extra material buffer to allow for trim jobs that will always arise. A few extra panels stashed in the shed is preferable to running out on some Saturday afternoon.

Then there’s the added complication of gravel boards. They is concrete or wood and raise your panels away from sodden ground to extend the lifespan of the fencing considerabely. But it’s important that they align perfectly with the bays in which they sit. So if you cut a panel back at the end of a run, then the last gravel board should of been clipped too. The calculator monitors the alignment for you so you won’t end up with plenty of uprights but not enough footings to attach them to.

Fencing is precision dressed up as simplicity. Get it wrong by an inch or two and suddenly there’s an ugly hole. Someone will need to drive to store for more wood, or you’ll have to take another trip around the yard with the wheelbarrow. Let the tool do the math and you’ll have more brainpower left over for doing what it takes. Measure twice, calculate once, and then dig. Then measure again.

Once you are finished with the final post and everything looks good, your future self will thank you.
