Counter Height Stool Spacing Calculator

Counter Height Stool Spacing Calculator

Estimate how many counter stools fit, the center-to-center spacing, end offsets, knee room, seat-height fit, and rear aisle clearance for kitchen islands, peninsulas, breakfast bars, and compact dining counters.

1Counter stool spacing presets

Pick a realistic seating layout, then adjust the run length, stool width, edge gaps, overhang, and aisle target to match your counter.

2Measure the counter and stools
Layout changes usable corner length and end-clearance assumptions.
Measure only the straight edge where stools will sit.
Use 0 for a straight counter. L layouts subtract corner overlap.
Measure the widest point, including arms or upholstery.
Seat depth affects how much rear aisle remains.
Common counter stool centers are 26 to 30 inches apart.
Leave more at a wall, waterfall side, post, or cabinet panel.
The calculator compares desired count to realistic capacity.
Counter-height seating usually feels best around 12 inches or more.
Counter-height stools usually pair with 34 to 36 inch counters.
Seat should usually sit 10 to 12 inches below the counter top.
Measure from counter edge to the obstacle behind the stool zone.
Use 36 inches for one person passing, 42 inches for busier paths.
Add the space a stool moves back while someone is sitting.
Bulkier stools need more side room and more rear clearance.
Constrained ends need extra offset so elbows and knees clear.
Recommended count
3
stools fit
Center spacing
27 in
between stool centers
End offset
9 in
center of first stool
Aisle check
36 in
clear behind seated stools
Spacing breakdown
Usable seating length52 in
Required length for desired count74 in
Side-to-side gap between stool edges9 in
Open end clearance used10 in
Layout corner or blocked-end allowance0 in
Counter-to-seat height gap11 in
Knee overhang ratingGood
Stool depth plus pull-out27 in
Walkway target resultMeets target
Placement score94 / 100
This layout has comfortable stool spacing, usable knee room, and enough rear aisle for everyday seating.
3Visual spacing plan
72 in run
27 in centers
10 in edge
36 in aisle
12 in knee

Recommended placement

3 stools on this counter with 27 in center spacing and 10 in minimum side offset.

This setup should feel comfortable for everyday counter seating if the stools tuck under the overhang and the rear aisle stays clear.

Center marks from the left edge:
10 in, 37 in, 64 in

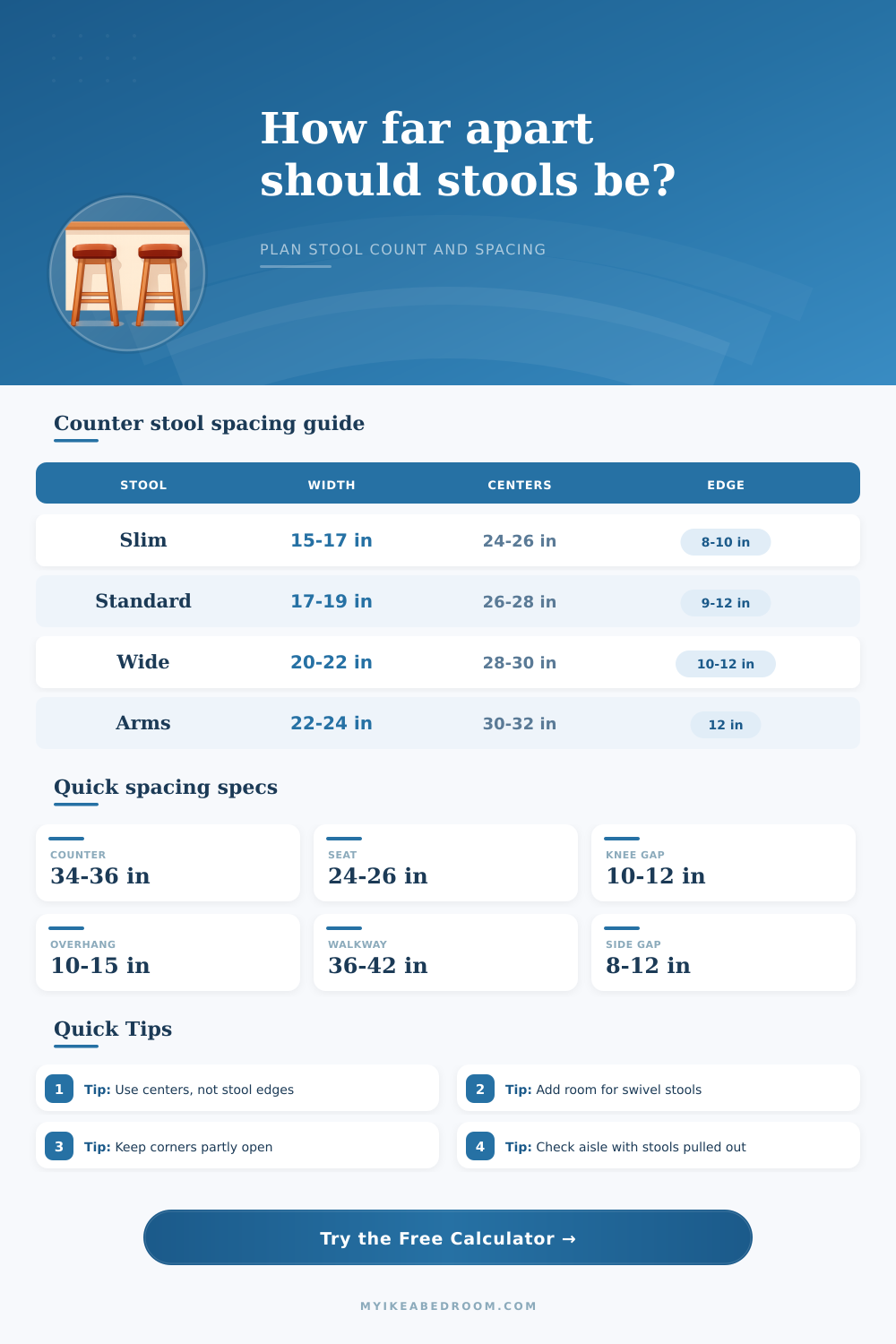

4Counter stool reference specs
24-26 in
Counter stool seat
Typical seat height for 34 to 36 inch counters.
26-30 in
Center spacing
Comfortable range for most adult stools.
8-12 in
End clearance
Distance from counter end to first stool edge or center plan.
10-15 in
Knee overhang
More overhang gives better comfort for longer sitting.
36 in
Passing aisle
Useful minimum behind occupied stools.
42 in
Busy aisle
Better behind islands near appliances or dining paths.
18-20 in
Common width
Most backless and low-back counter stools land here.
22-24 in
Arms or swivel
Wide stools usually need wider centers and more aisle.
5Spacing tables
Recommended spacing by stool type
Stool typeTypical outside widthSuggested center spacingBest use
Compact backless stool15 to 17 inches24 to 26 inchesSmall apartments, kids counters, short breakfast bars
Standard counter stool17 to 19 inches26 to 28 inchesMost kitchen islands and peninsulas
Upholstered or curved stool20 to 22 inches28 to 30 inchesLonger seating runs where comfort matters
Swivel stool or stool with arms22 to 24 inches30 to 32 inchesOpen islands with generous aisle clearance
Wide lounge-style counter stool24 to 26 inches32 to 34 inchesLarge islands, entertainment counters, low-density seating
How many stools fit common counter lengths
Counter runComfortable countTypical center spacingNotes
48 inches2 stools24 to 26 inchesUse slim stools and keep end clearance modest
60 inches2 stools26 to 30 inchesRoomier two-seat counter or tight three-seat layout
72 inches3 stools26 to 28 inchesCommon island size for standard counter stools
84 inches3 stools28 to 30 inchesComfortable for wider stools or one blocked end
96 inches4 stools26 to 28 inchesGood family island length with standard stools
120 inches5 stools26 to 28 inchesLong island; check support legs and appliance clearances
Height, overhang, and aisle comfort checks
DimensionComfortable targetTight but usableWhy it matters
Seat below counter top10 to 12 inches9 to 13 inchesKeeps thighs from hitting the top while feet reach the rail
Counter overhang12 to 15 inches10 to 11 inchesControls knee room and how naturally people sit forward
Aisle behind seated person36 to 42 inches30 to 35 inchesAllows people to pass without bumping stool backs
End clearance at open side8 to 10 inches6 to 8 inchesLeaves elbow room and keeps a stool off the corner
End clearance at wall side12 to 15 inches10 to 12 inchesPrevents shoulders, arms, and swivel motion from hitting the side
Layout-specific spacing allowances
LayoutAllowance to subtractSpacing priorityPlanning note
Straight islandEnd clearances onlyEven centers along the whole runBest layout for maximizing stool count cleanly
PeninsulaExtra blocked-end offsetKeep the closed end less crowdedOne end often meets a cabinet, wall, or appliance panel
L-shaped counterCorner dead zoneDo not seat two people into the same inside cornerSubtract 18 to 24 inches around the corner before counting stools
Wall ledgeExtra side and rear clearanceLeave room to slide in and outPeople need side access when the counter faces a wall
6Practical spacing tips

Mark stool centers before buying. Tape the center marks on the floor or counter edge, then place chairs or boxes at those marks. This quickly reveals whether elbows, knees, and foot rails feel crowded.

Use the widest part of the stool. Published seat widths can ignore arms, curved backs, swivel hardware, or flared legs. Measure the outside envelope that might collide with the next stool.

Protect the corner seat. L-shaped counters often look like they have extra length, but the inside corner cannot comfortably seat two people at once. Keep that corner partly open.

Check the aisle with someone seated. Rear clearance should include stool depth plus the pull-out distance. A walkway that looks wide with stools tucked in can feel tight during meals.

The thing you’ll learn if you’ve ever purchased counter height stools: they almost never fit together like you expect. You spend weeks researching, searching for cool leather, finding good looking legs, etc., then it arrives on Tuesday and doesn’t fit next to anything. Why? Because purchasing furnitures isn’t simply purchasing the item, but rather the negative space surrounding it. It’s the difference between having a social kitchen island and a tripping hazard.

So what’s wrong? Well, it begins with measurement. If most of us is measuring the width of our stool seat and assuming that’s the gap we should have, we’re mistaken. Remember: You don’t want the edge of the stool seat touching another edge; rather, you want the middle of one stool to touch the middle of the next. And why is that? Because there will be legroom and arm space in there, plus room for fidgeting while you prepare dinner. So if you only measure width of the stool seat, you’re ignoring human body entirely.

How to Fit Stools in Your Kitchen

Once you input your exact counter measurements into the calculator, it do the math for you. Begin with a precise measurement of your counter run. An L-shaped corner typicaly won’t count toward seating because the inside angle form a pinch point. When someone sits there, their shoulders rub as if trying to escape. Eliminate this useless area from your usable space when determining how many seat will fit. Square-footage be damned; comfort avoids elbow wars, not stuffing as many people in as possible.

After you figure out how many linear feet of seating you’ll actualy use, think about what kind of stool(s) you want to purchase. Backless, skinny stools requires less space than wide-armed, cushy upholstered chairs. The calculator takes all this into account, so there’s no need for you to imagine every possible combination in your head. It even verifies whether there will be enough space behind the seating (a.k.a. “aisle clearance”), something you might not realize is important until someone knocks his/her shin on a footstool. If anyone other than you will need to navigate through the backs of the stools, aim for a minimum of 36 inches of walking space between them; otherwise, your island may become an island of isolation when that number falls under 30 inches.

The other sneaky problem is height alignment. Your stool seat should sits ten to twelve inches from the top of a counter (which typically runs at thirty-four or thirty-six inches). That leaves room for your upper legs to fit comfortabley under the overhang of counters and lets your thighs rest comfortably. Sit up too high in a stool, and you’ll perch; sit up too low, and you’ll hunch, and either way, those positions gets painful after even just twenty minutes of chatting. The tool checks whether that vertical relationship make ergonomic sense.

And don’t overlook edge clearances. Eight inches from end of countertop to seat center is good (so nobody sits back against a wall or a cabinet door). Add another inch, or even more if it is a peninsula with one end closed. This gives people breathing room to slide in without banging their hip into the surface. Simple math, but it’s pure social grace: No one feels like they’re in a tight slot between two obstacles; they feel invited.

The thing about planning for stools is that it’s really just planning for motion. You lean forward to talk to person next to you; you want to move back a little. So if you cram ‘em together on paper, trust me, they’ll feel every millimeter of that in real life. Take a minute to plan it out before you order, a couple of inches of open space are worth a couple of hundred bucks of unnecessary furnitures. Your future self should of thanked you for avoiding a kitchen obstacle course.
